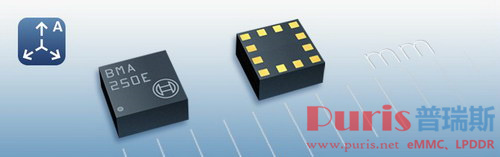

BMA250E(F) BOSCH 三轴加速度传感器

品牌:博世 BOSCH
型号:BMA250E、BMA250E(F)
规格:三轴加速度传感器
备注:BMA250E(F)为最新型号,封装跟功能与BMA250E一致,工艺有所更新。

BMA250EBMA250E

BMA250E

Parameter Technical data
Digital resolution 10 bit
Resolution
(±2 g range)
3.9 mg
Measurement range
(programmable)
±2 g, ±4 g, ±8 g, ±16 g
Sensitivity
(calibrated)
±2 g: 256 LSB/g
±4 g: 128 LSB/g
±8 g: 64 LSB/g
±16 g: 32 LSB/g
Zero-g offset
(over lifetime)
±80 mg
Bandwidths
(programmable)
1000 Hz … 8 Hz
Digital inputs/ outputs SPI & I2C, 2x digital interrupt pins
Supply voltage 1.62 V … 3.6 V
I/O supply voltage 1.2 V … 3.6 V
Temperature range -40°C … +85°C
Current consumption
(full operation)
130 μA (@ 2 kHz data rate)
Current consumption
(low-power mode)
6.5 μA (@ 40 Hz data rate)
LGA package 2 x 2 x 0.95 mm3
Interrupts
  • Data-ready (e. g. for processor synchronization)
  • Any-motion (slope) detection (e. g. for wake-up)
  • Tap sensing (e. g. for tap-sensitive UI control)
  • Orientation change recognition (e. g. for portrait/landscape switching)
  • Flat detection (e. g. for position sensitive switching)
  • Low-g / high-g detection (e. g. for shock and free-fall detection)
  • No-motion (e.g. for power saving)
